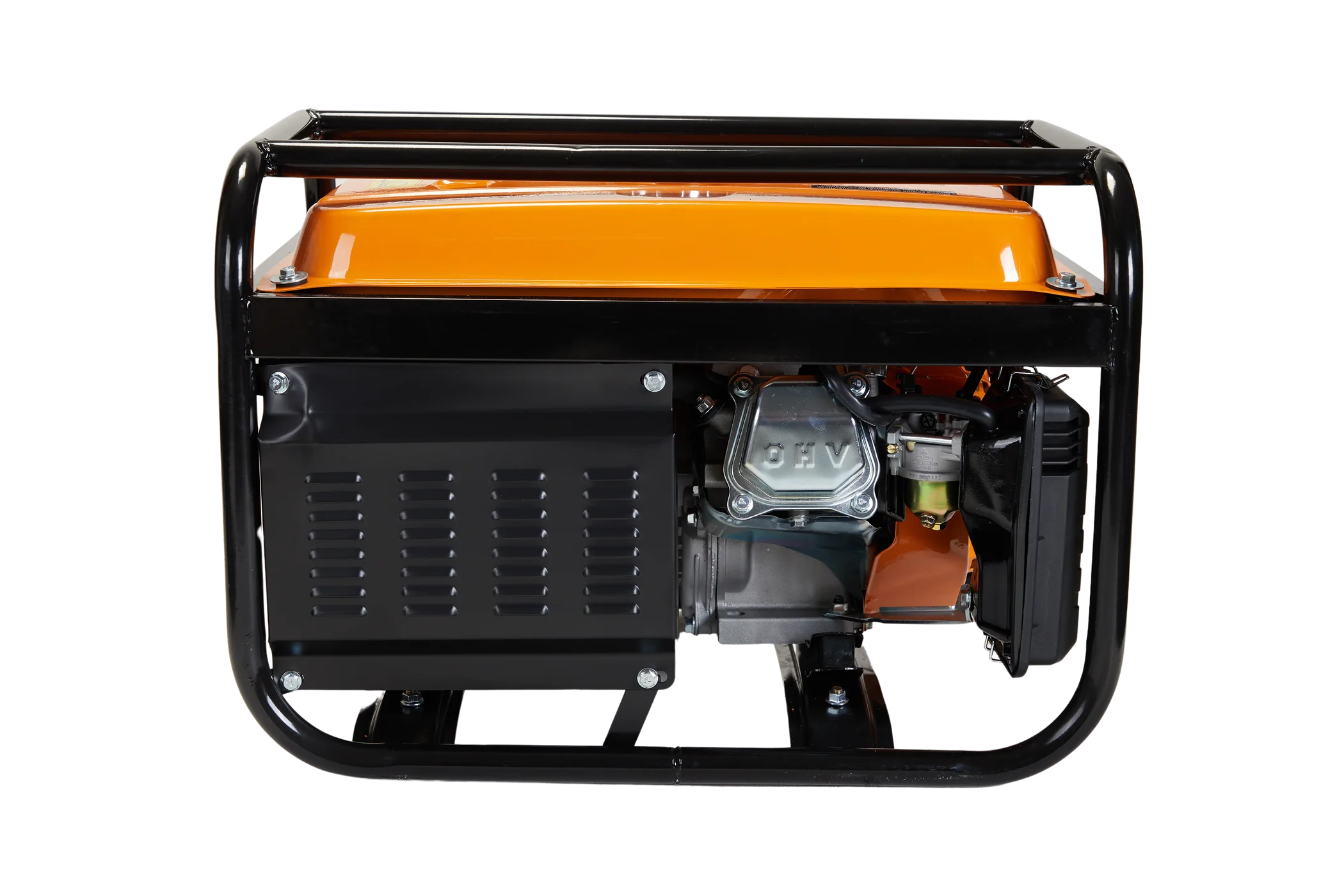

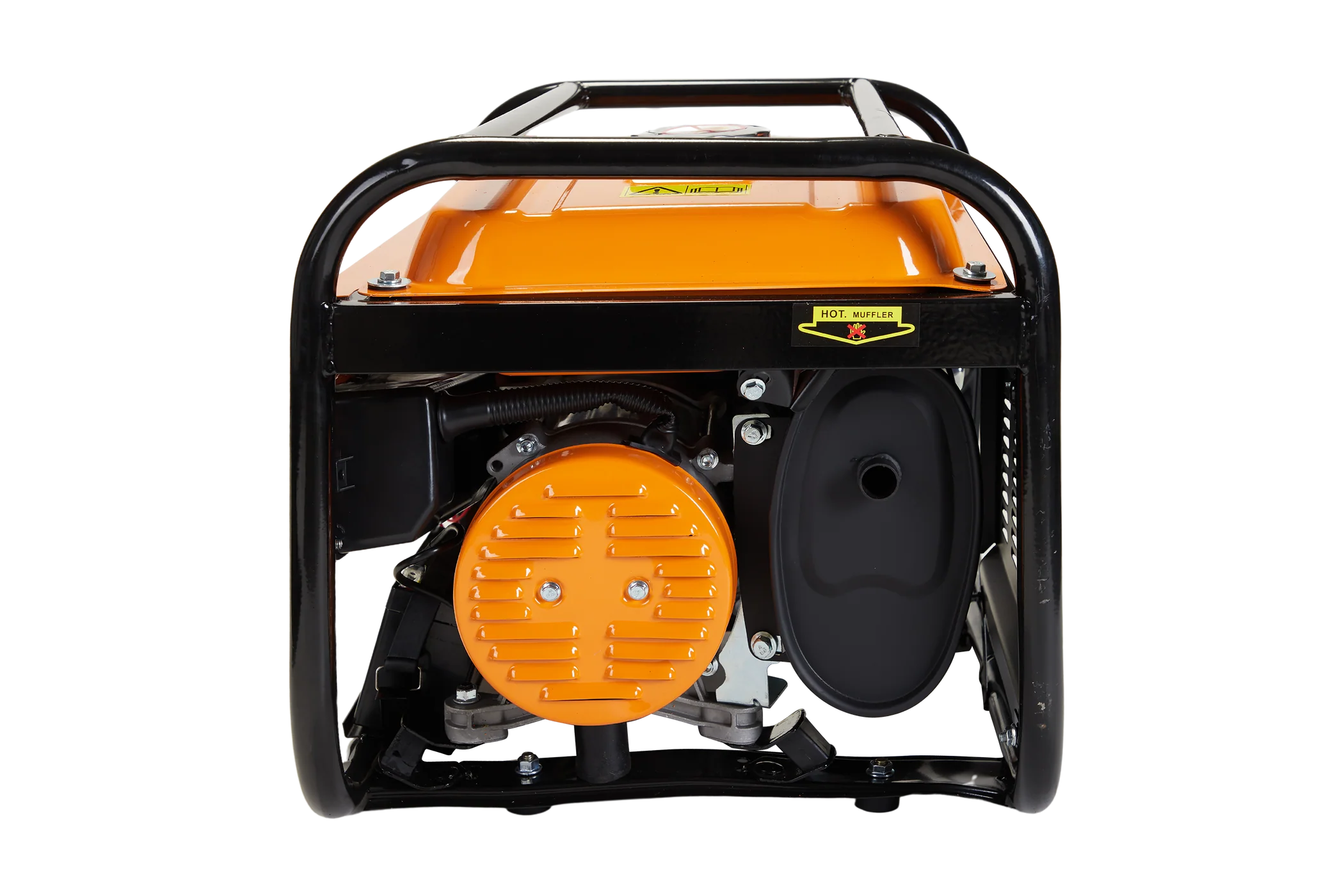

Gasoline Generator 1.1 KVA Portable Power with Self Start Large Fuel Tank Inbuilt Battery

Specifications

• Brand: Greenleaf
• Weight (Approx.) : 35 kg
• Fuel Used : Petrol
• Fuel Consumption : 1 l/hr

• Model Number : PL-1100
• Engine Displacement : ~98cc
• Rated Power : 1 kW
• Maximum Power : 1.1 kW
• Voltage : 230V Single Phase
• Frequency : 50 Hz
• Fuel Type : Petrol (Gasoline)
• Fuel Tank Capacity : 15 Litres
• Runtime: 6–8 hours continuous
• Starting System : Self start with manual recoil
• Noise Level : 65 dB @ 7 meters
• Oil Capacity : 0.45 Litres
• Output Sockets : 2 x 230V AC, 1 x 12V DC

The PILOT 1.1KW Gasoline Generator delivers reliable, portable power for homes, job sites, and outdoor events. Featuring a fuel-efficient 4-stroke engine, self-start, and a large 15-litre tank, it runs up to 8 hours continuously. Ideal for emergency backup, construction tools, and camping, this quiet generator offers multiple outlets and built-in safety features for worry-free operation.

Features :

• Rated power output of 1 kW with max output of 1.1 kW

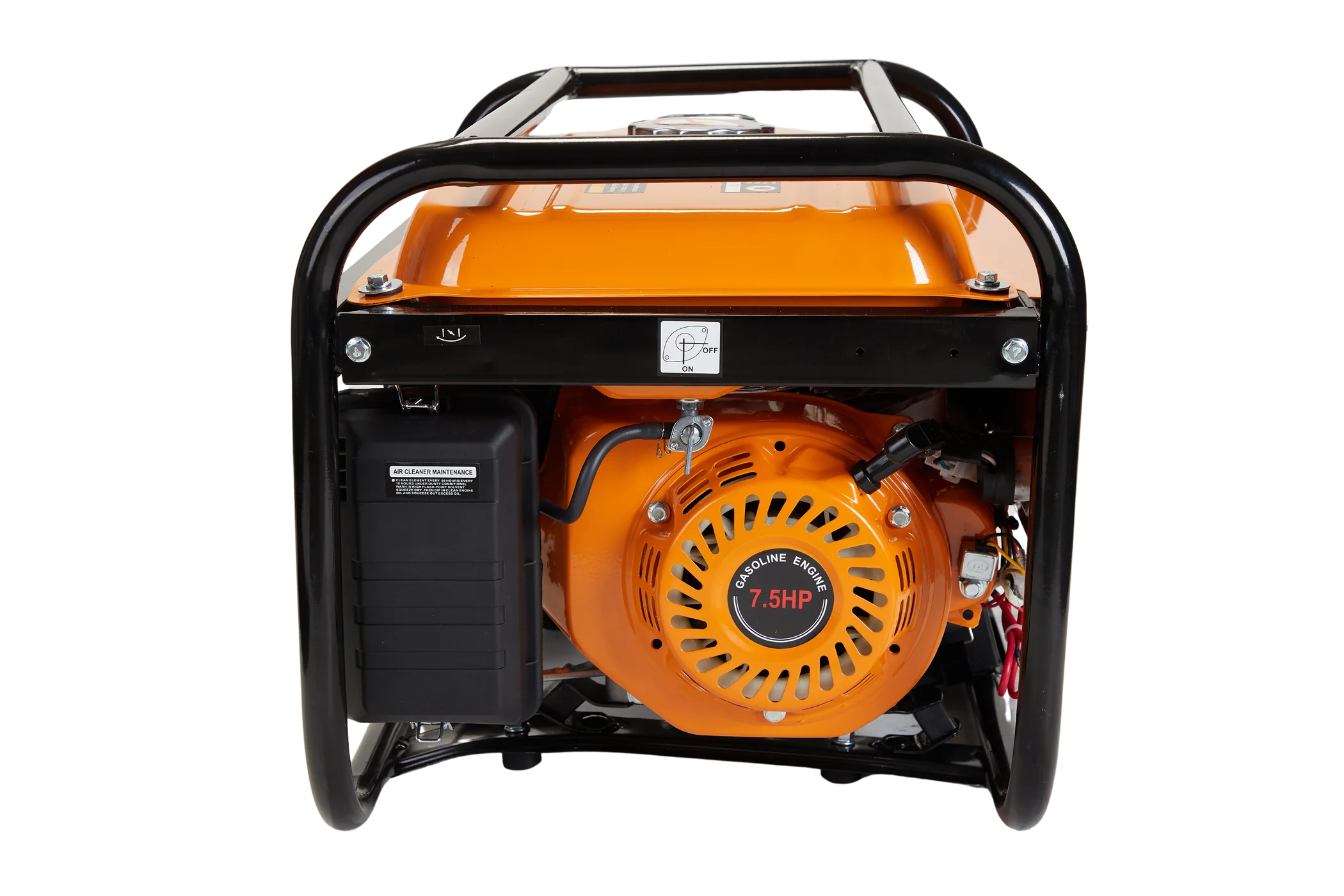

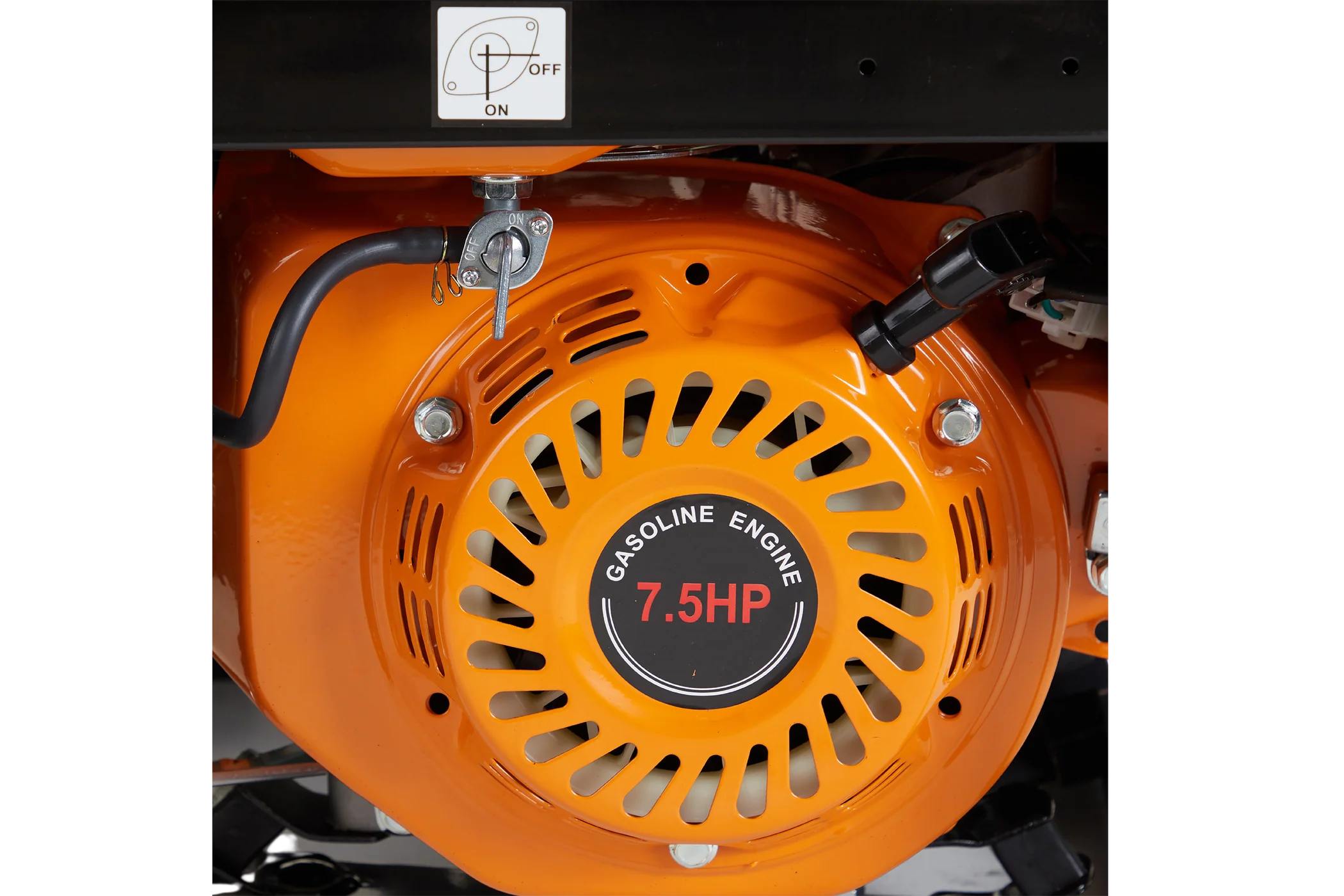

• 4-stroke air-cooled OHV single-cylinder engine for fuel efficiency
• Large 15-litre fuel tank for 6–8 hours of continuous use
• Self start with manual recoil backup for easy operation
• Quiet operation at 65 dB noise level at 7 meters
• Multiple output sockets: 2 x 230V AC and 1 x 12V DC
• Overload protection and low oil shutdown safeguard engine health
• Compact and portable design suitable for varied applications

• Emergency home backup power during outages
• Construction sites powering tools and lights
• Outdoor events and camping for portable electricity
• Small shops and businesses during load shedding
• Field and emergency response operations requiring reliable power

User Instructions :

1. Fill the fuel tank with clean petrol.
2. Check the engine oil level and top up if needed.
3. Turn the fuel valve on and choke the engine (if cold start).
4. Press the electric start button or pull the recoil cord to start the engine.
5. Connect your appliances to the 230V AC or 12V DC outlets.
6. Adjust the choke as engine warms up and operate as needed.
7. Turn off the fuel valve and engine after use.

• Regularly check and change the engine oil every 50 hours or as recommended.
• Clean or replace the air filter periodically for optimal engine performance.
• Inspect spark plug condition and replace if worn.
• Drain fuel if storing for long periods to avoid carburetor issues.
• Keep the generator clean and store in a dry place when not in use.
• Follow the user manual for scheduled maintenance and troubleshooting
